Restart on WaveRace

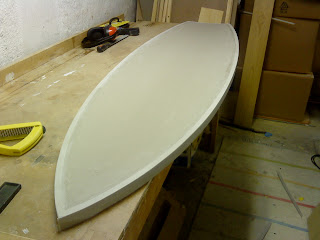

The raw blank with poured rail and outline

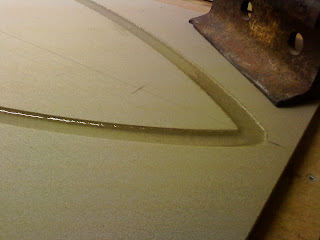

Rail made with epoxy and glass balloons
Extra 15mm layer bagged down to first
Overall 5´8" length
Bottom of blank
will shape top side and put rocker in later

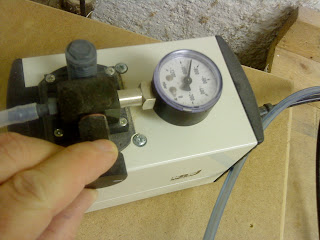

The little wonder pump

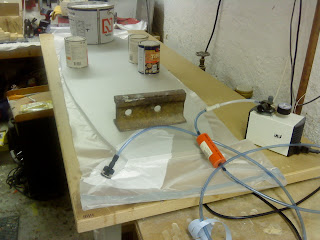

Bagging the 2 layers of foam together
used epoxy and glass balloon mix to glue together
söndag 8 mars 2009
Waveboard started
Decided to use the "poured edge" technique on this 5ft 8in wave board
I used a simple foam template to route groove.
The template is smaller than board outline by router plate and bit distance.
Only made one half of outline and a tail profile.
onsdag 4 mars 2009
Ready for Paint
The fins look lethal
Rocker
3 strips of UD carbon on bottom
3 + 2 on deck
lördag 31 januari 2009
Vacuum Bagging Race Board
All the materials cut and ready to go
Rocker Table with V-bag
Vacuum working
Laminating botton of board first
Weight to hold down board to rocker table
tisdag 20 januari 2009
Intalling finboxes
Checking out fin placement
Traifa Fin Company race fins 25 and 10cm, 25 degree cant angle
Looking fast
Gluing with Epoxy
onsdag 7 januari 2009
Raceboard inserts
Inserts ready
M6 stainless steel
Set up for 3 footstraps - 2 forward positions
måndag 29 december 2008
Shaping the blank
Blank is out of the bag and shaped to outline
Tapering down the nose area to 15mm thickness with planer
All the rails shaped
The rocker will be formed in V-bag
